Install Hadoop Multinode Cluster using CDH4 in RHEL/CentOS 6.5

Hadoop is an open source programing framework developed by apache to process big data. It uses HDFS(Hadoop Distributed File System) to store the data across all the datanodes in the cluster in a distributive manner and mapreduce model to process the data.
Install Hadoop Multinode Cluster in CentOS
Install Hadoop Multinode Cluster
Namenode (NN) is a master daemon which controls HDFS and Jobtracker (JT) is master daemon for mapreduce engine.

Requirements

In this tutorial I’m using two CentOS 6.3 VMs ‘master‘ and ‘node‘ viz. (master and node are my hostnames). The ‘master’ IP is 172.21.17.175 and node IP is ‘172.21.17.188‘. The following instructions also works onRHEL/CentOS 6.x versions.
On Master
[root@master ~]# hostname

master
[root@master ~]# ifconfig|grep 'inet addr'|head -1

inet addr:172.21.17.175  Bcast:172.21.19.255  Mask:255.255.252.0
On Node
[root@node ~]# hostname

node
[root@node ~]# ifconfig|grep 'inet addr'|head -1

inet addr:172.21.17.188  Bcast:172.21.19.255  Mask:255.255.252.0
First make sure that all the cluster hosts are there in ‘/etc/hosts‘ file (on each node), if you do not have DNS set up.
On Master
[root@master ~]# cat /etc/hosts

172.21.17.175 master
172.21.17.188 node
On Node
[root@node ~]# cat /etc/hosts

172.21.17.197 qabox
172.21.17.176 ansible-ground

Installing Hadoop Multinode Cluster in CentOS

We use official CDH repository to install CDH4 on all the hosts (Master and Node) in a cluster.

Step 1: Download Install CDH Repository

Go to official CDH download page and grab the CDH4 (i.e. 4.6) version or you can use following wget command to download the repository and install it.
On RHEL/CentOS 32-bit
# wget http://archive.cloudera.com/cdh4/one-click-install/redhat/6/i386/cloudera-cdh-4-0.i386.rpm
# yum --nogpgcheck localinstall cloudera-cdh-4-0.i386.rpm
On RHEL/CentOS 64-bit
# wget http://archive.cloudera.com/cdh4/one-click-install/redhat/6/x86_64/cloudera-cdh-4-0.x86_64.rpm
# yum --nogpgcheck localinstall cloudera-cdh-4-0.x86_64.rpm
Before installing Hadoop Multinode Cluster, add the Cloudera Public GPG Key to your repository by running one of the following command according to your system architecture.
## on 32-bit System ##

# rpm --import http://archive.cloudera.com/cdh4/redhat/6/i386/cdh/RPM-GPG-KEY-cloudera
## on 64-bit System ##

# rpm --import http://archive.cloudera.com/cdh4/redhat/6/x86_64/cdh/RPM-GPG-KEY-cloudera

Step 2: Setup JobTracker & NameNode

Next, run the following command to install and setup JobTracker and NameNode on Master server.
[root@master ~]# yum clean all
[root@master ~]# yum install hadoop-0.20-mapreduce-jobtracker
[root@master ~]# yum clean all
[root@master ~]# yum install hadoop-hdfs-namenode

Step 3: Setup Secondary Name Node

Again, run the following commands on the Master server to setup secondary name node.
[root@master ~]# yum clean all
[root@master ~]# yum install hadoop-hdfs-secondarynam

Step 4: Setup Tasktracker & Datanode

Next, setup tasktracker & datanode on all cluster hosts (Node) except the JobTracker, NameNode, and Secondary (or Standby) NameNode hosts ( on node in this case ).
[root@node ~]# yum clean all
[root@node ~]# yum install hadoop-0.20-mapreduce-tasktracker hadoop-hdfs-datanode

Step 5: Setup Hadoop Client

You can install Hadoop client on a separate machine ( in this case I have installed it on datanode you can install it on any machine).
[root@node ~]# yum install hadoop-client

Step 6: Deploy HDFS on Nodes

Now if we are done with above steps let’s move forward to deploy hdfs (to be done on all the nodes ).
Copy the default configuration to /etc/hadoop directory ( on each node in cluster ).
[root@master ~]# cp -r /etc/hadoop/conf.dist /etc/hadoop/conf.my_cluster
[root@node ~]# cp -r /etc/hadoop/conf.dist /etc/hadoop/conf.my_cluster
Use alternatives command to set your custom directory, as follows ( on each node in cluster ).
[root@master ~]# alternatives --verbose --install /etc/hadoop/conf hadoop-conf /etc/hadoop/conf.my_cluster 50
reading /var/lib/alternatives/hadoop-conf

[root@master ~]# alternatives --set hadoop-conf /etc/hadoop/conf.my_cluster
[root@node ~]# alternatives --verbose --install /etc/hadoop/conf hadoop-conf /etc/hadoop/conf.my_cluster 50
reading /var/lib/alternatives/hadoop-conf

[root@node ~]# alternatives --set hadoop-conf /etc/hadoop/conf.my_cluster

Step 7: Customizing Configuration Files

Now open ‘core-site.xml‘ file and update “fs.defaultFS” on each node in cluster.
[root@master conf]# cat /etc/hadoop/conf/core-site.xml



 fs.defaultFS
 hdfs://master/

[root@node conf]# cat /etc/hadoop/conf/core-site.xml




 fs.defaultFS
 hdfs://master/

Next update “dfs.permissions.superusergroup” in hdfs-site.xml on each node in cluster.
[root@master conf]# cat /etc/hadoop/conf/hdfs-site.xml



     dfs.name.dir
     /var/lib/hadoop-hdfs/cache/hdfs/dfs/name


     dfs.permissions.superusergroup
     hadoop

[root@node conf]# cat /etc/hadoop/conf/hdfs-site.xml



     dfs.name.dir
     /var/lib/hadoop-hdfs/cache/hdfs/dfs/name


     dfs.permissions.superusergroup
     hadoop

Note: Please make sure that, the above configuration is present on all the nodes (do on one node and run scp to copy on rest of the nodes ).

Step 8: Configuring Local Storage Directories

Update “dfs.name.dir or dfs.namenode.name.dir” in ‘hdfs-site.xml’ on the NameNode ( on Master and Node ). Please change the value as highlighted.
[root@master conf]# cat /etc/hadoop/conf/hdfs-site.xml

 dfs.namenode.name.dir
 file:///data/1/dfs/nn,/nfsmount/dfs/nn
[root@node conf]# cat /etc/hadoop/conf/hdfs-site.xml

 dfs.datanode.data.dir
 file:///data/1/dfs/dn,/data/2/dfs/dn,/data/3/dfs/dn

Step 9: Create Directories & Manage Permissions

Execute below commands to create directory structure & manage user permissions on Namenode (Master) and Datanode (Node) machine.
[root@master]# mkdir -p /data/1/dfs/nn /nfsmount/dfs/nn
[root@master]# chmod 700 /data/1/dfs/nn /nfsmount/dfs/nn
[root@node]#  mkdir -p /data/1/dfs/dn /data/2/dfs/dn /data/3/dfs/dn /data/4/dfs/dn
[root@node]#  chown -R hdfs:hdfs /data/1/dfs/nn /nfsmount/dfs/nn /data/1/dfs/dn /data/2/dfs/dn /data/3/dfs/dn /data/4/dfs/dn
Format the Namenode (on Master), by issuing following command.
[root@master conf]# sudo -u hdfs hdfs namenode -format

Step 10: Configuring the Secondary NameNode

Add the following property to the hdfs-site.xml file and replace value as shown on Master.

  dfs.namenode.http-address
  172.21.17.175:50070

    The address and port on which the NameNode UI will listen.

Note: In our case value should be ip address of master VM.
Now let’s deploy MRv1 ( Map-reduce version 1 ). Open ‘mapred-site.xml‘ file following values as shown.
[root@master conf]# cp hdfs-site.xml mapred-site.xml
[root@master conf]# vi mapred-site.xml
[root@master conf]# cat mapred-site.xml




 mapred.job.tracker
 master:8021

Next, copy ‘mapred-site.xml‘ file to node machine using the following scp command.
[root@master conf]# scp /etc/hadoop/conf/mapred-site.xml node:/etc/hadoop/conf/
mapred-site.xml                                                                      100%  200     0.2KB/s   00:00
Now configure local storage directories to use by MRv1 Daemons. Again open ‘mapred-site.xml‘ file and make changes as shown below for each TaskTracker.

 mapred.local.dir
 /data/1/mapred/local,/data/2/mapred/local,/data/3/mapred/local
After specifying these directories in the ‘mapred-site.xml‘ file, you must create the directories and assign the correct file permissions to them on each node in your cluster.
mkdir -p /data/1/mapred/local /data/2/mapred/local /data/3/mapred/local /data/4/mapred/local
chown -R mapred:hadoop /data/1/mapred/local /data/2/mapred/local /data/3/mapred/local /data/4/mapred/local

Step 10 : Start HDFS

Now run the following command to start HDFS on every node in the cluster.
[root@master conf]# for x in `cd /etc/init.d ; ls hadoop-hdfs-*` ; do sudo service $x start ; done
[root@node conf]# for x in `cd /etc/init.d ; ls hadoop-hdfs-*` ; do sudo service $x start ; done

Step 11 : Create HDFS /tmp and MapReduce /var Directories

It is required to create /tmp with proper permissions exactly as mentioned below.
[root@master conf]# sudo -u hdfs hadoop fs -mkdir /tmp
[root@master conf]# sudo -u hdfs hadoop fs -chmod -R 1777 /tmp
[root@master conf]# sudo -u hdfs hadoop fs -mkdir -p /var/lib/hadoop-hdfs/cache/mapred/mapred/staging
[root@master conf]# sudo -u hdfs hadoop fs -chmod 1777 /var/lib/hadoop-hdfs/cache/mapred/mapred/staging
[root@master conf]# sudo -u hdfs hadoop fs -chown -R mapred /var/lib/hadoop-hdfs/cache/mapred
Now verify the HDFS File structure.
[root@node conf]# sudo -u hdfs hadoop fs -ls -R /

drwxrwxrwt   - hdfs hadoop           0 2014-05-29 09:58 /tmp
drwxr-xr-x    - hdfs hadoop           0 2014-05-29 09:59 /var
drwxr-xr-x   - hdfs hadoop           0 2014-05-29 09:59 /var/lib
drwxr-xr-x    - hdfs hadoop          0 2014-05-29 09:59 /var/lib/hadoop-hdfs
drwxr-xr-x    - hdfs hadoop           0 2014-05-29 09:59 /var/lib/hadoop-hdfs/cache
drwxr-xr-x    - mapred hadoop          0 2014-05-29 09:59 /var/lib/hadoop-hdfs/cache/mapred
drwxr-xr-x    - mapred hadoop          0 2014-05-29 09:59 /var/lib/hadoop-hdfs/cache/mapred/mapred
drwxrwxrwt   - mapred hadoop          0 2014-05-29 09:59 /var/lib/hadoop-hdfs/cache/mapred/mapred/staging
After you start HDFS and create ‘/tmp‘, but before you start the JobTracker please create the HDFS directory specified by the ‘mapred.system.dir’ parameter (by default ${hadoop.tmp.dir}/mapred/system and change owner to mapred.
[root@master conf]# sudo -u hdfs hadoop fs -mkdir /tmp/mapred/system
[root@master conf]# sudo -u hdfs hadoop fs -chown mapred:hadoop /tmp/mapred/system

Step 12: Start MapReduce

To start MapReduce : please start the TT and JT services.
On each TaskTracker system
[root@node conf]# service hadoop-0.20-mapreduce-tasktracker start

Starting Tasktracker:                               [  OK  ]
starting tasktracker, logging to /var/log/hadoop-0.20-mapreduce/hadoop-hadoop-tasktracker-node.out
On the JobTracker system
[root@master conf]# service hadoop-0.20-mapreduce-jobtracker start

Starting Jobtracker:                                [  OK  ]

starting jobtracker, logging to /var/log/hadoop-0.20-mapreduce/hadoop-hadoop-jobtracker-master.out
Next, create a home directory for each hadoop user. it is recommended that you do this on NameNode; for example.
[root@master conf]# sudo -u hdfs hadoop fs -mkdir  /user/
[root@master conf]# sudo -u hdfs hadoop fs -chown  /user/
Note: where is the Linux username of each user.
Alternatively, you cancreate the home directory as follows.
[root@master conf]# sudo -u hdfs hadoop fs -mkdir /user/$USER
[root@master conf]# sudo -u hdfs hadoop fs -chown $USER /user/$USER

Step 13: Open JT, NN UI from Browser

Open your browser and type the url as http://ip_address_of_namenode:50070 to access Namenode.

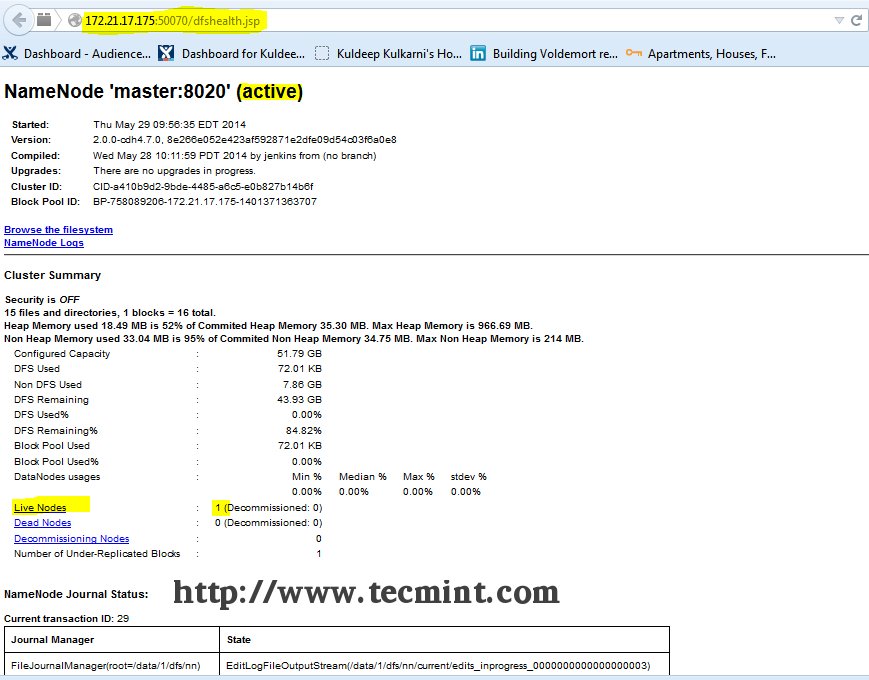

Hadoop NameNode Interface
Hadoop NameNode Interface
Open another tab in your browser and type the url as http://ip_address_of_jobtracker:50030 to access JobTracker.

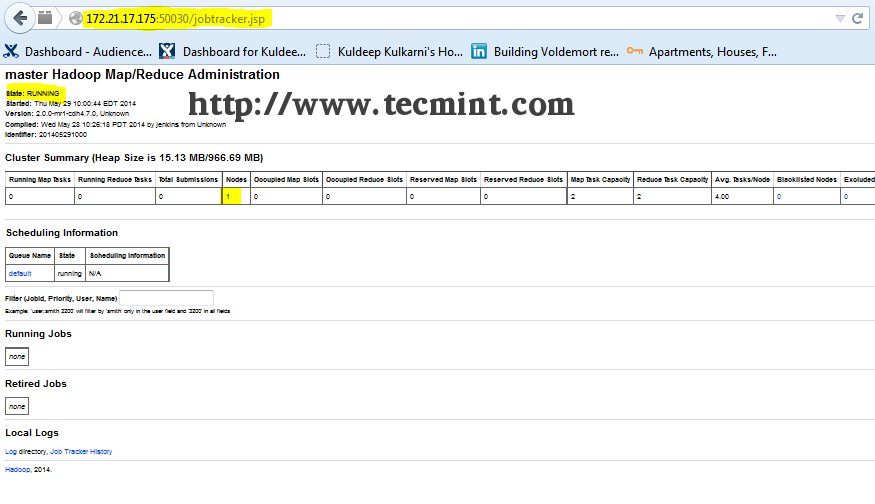

Hadoop Map/Reduce Administration
Hadoop Map/Reduce Administration
This procedure has been successfully tested on RHEL/CentOS 5.X/6.X. Please comment below if you face any issues with the installation

Introduction to GlusterFS (File System) and Installation on RHEL/CentOS and Fedora

http://www.tecmint.com/introduction-to-glusterfs-file-system-and-installation-on-rhelcentos-and-fedora/
We are living in a world where data is growing in an unpredictable way and it our need to store this data, whether it is structured or unstructured, in an efficient manner. Distributed computing systems offer a wide array of advantages over centralized computing systems. Here data is stored in a distributed way with several nodes as servers.
GlusterFS Storage
GlusterFS Storage
The concept of a metadata server is no longer needed in a distributed file system. In distributed file systems, it offers a common view point of all the files separated among different servers. Files/directories on these storage servers are accessed in normal ways.
For example, the permissions for files/directories can be set as in usual system permission model, i.e. the owner, group and others. The access to the file system basically depends on how the particular protocol is designed to work on the same.

What is GlusterFS?

GlusterFS is a distributed file system defined to be used in user space, i.e. File System in User Space (FUSE). It is a software based file system which accounts to its own flexibility feature.

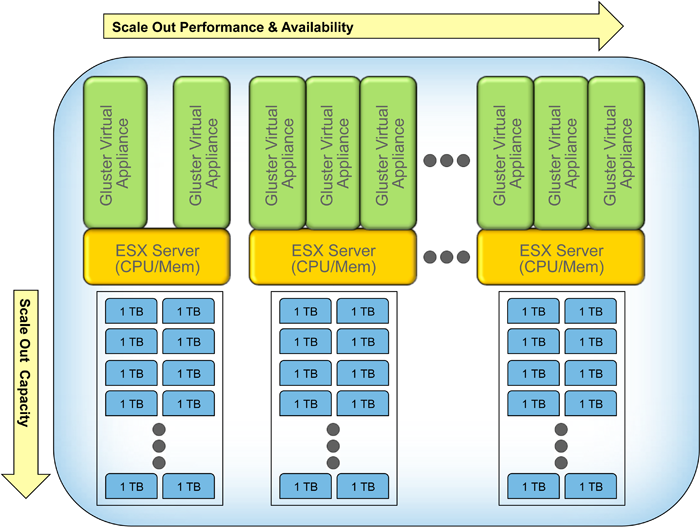

Look at the following figure which schematically represents the position of GlusterFS in a hierarchical model. By default TCP protocol will be used by GlusterFS.
GlusterFS Design
GlusterFS Design

Advantages to GlusterFS

  1. Innovation – It eliminates the metadata and can dramtically improve the performance which will help us to unify data and objects.
  2. Elasticity – Adapted to growth and reduction of size of the data.
  3. Scale Linearly – It has availability to petabytes and beyond.
  4. Simplicity – It is easy to manage and independent from kernel while running in user space.

What makes Gluster outstanding among other distributed file systems?

  1. Salable – Absence of a metadata server provides a faster file system.
  2. Affordable – It deploys on commodity hardware.
  3. Flexible – As I said earlier, GlusterFS is a software only file system. Here data is stored on native file systems like ext4, xfs etc.
  4. Open Source – Currently GlusterFS is maintained by Red Hat Inc, a billion dollar open source company, as part of Red Hat Storage.

Storage concepts in GlusterFS

  1. Brick – Brick is basically any directory that is meant to be shared among the trusted storage pool.
  2. Trusted Storage Pool – is a collection of these shared files/directories, which are based on the designed protocol.
  3. Block Storage – They are devices through which the data is being moved across systems in the form of blocks.
  4. Cluster – In Red Hat Storage, both cluster and trusted storage pool convey the same meaning of collaboration of storage servers based on a defined protocol.
  5. Distributed File System – A file system in which data is spread over different nodes where users can access the file without knowing the actual location of the file. User doesn’t experience the feel of remote access.
  6. FUSE – It is a loadable kernel module which allows users to create file systems above kernel without involving any of the kernel code.
  7. glusterd – glusterd is the GlusterFS management daemon which is the backbone of file system which will be running throughout the whole time whenever the servers are in active state.
  8. POSIX – Portable Operating System Interface (POSIX) is the family of standards defined by the IEEE as a solution to the compatibility between Unix-variants in the form of an Application Programmable Interface (API).
  9. RAID – Redundant Array of Independent Disks (RAID) is a technology that gives increased storage reliability through redundancy.
  10. Subvolume – A brick after being processed by least at one translator.
  11. Translator – A translator is that piece of code which performs the basic actions initiated by the user from the mount point. It connects one or more sub volumes.
  12. Volume – A volumes is a logical collection of bricks. All the operations are based on the different types of volumes created by the user.
Different Types of Volumes
Representations of different types of volumes and combinations among these basic volume types are also allowed as shown below.

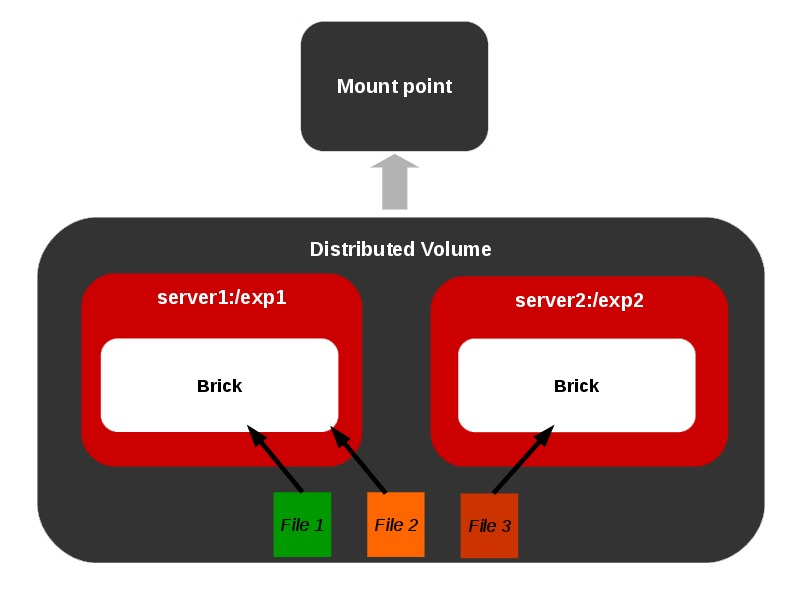

Distributed Volume
Distributed Volume

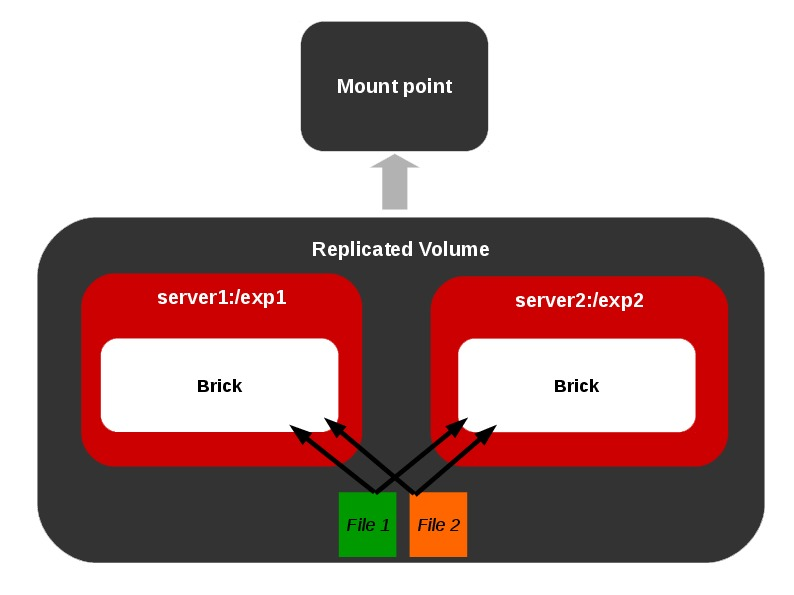

Replicated Volume
Replicated Volume

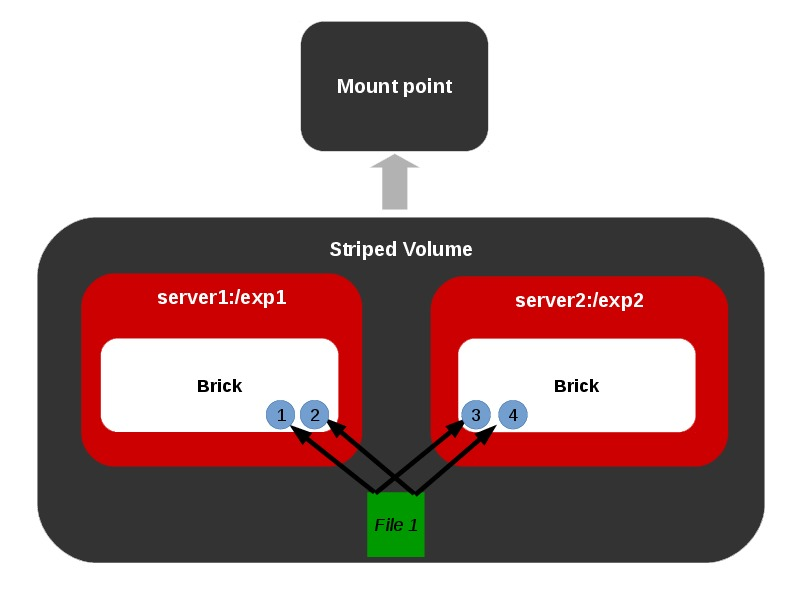

Striped Volume
Striped Volume

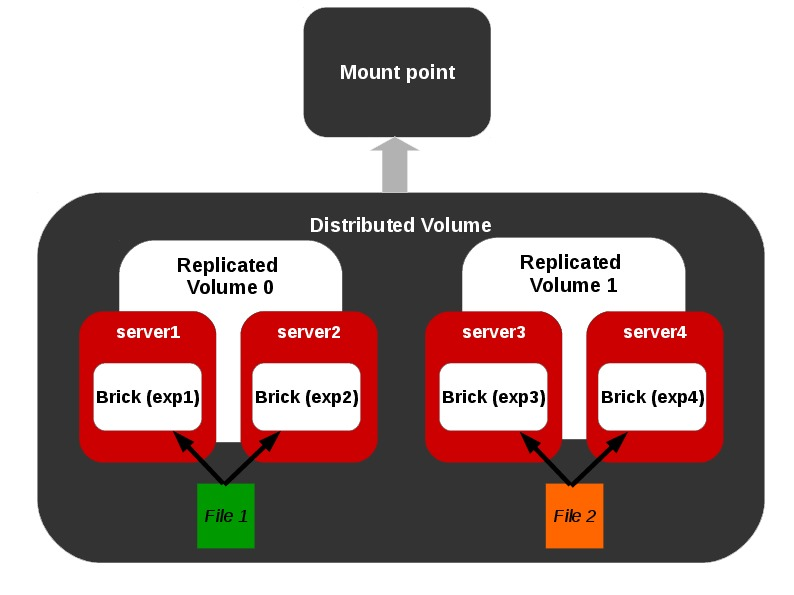

Distributed Replicated Volume
Representation of a distributed-replicated volume.
Distributed Replicated Volume
Distributed Replicated Volume

Installation of GlusterFS in RHEL/CentOS and Fedora

In this article, we will be installing and configuring GlusterFS for the first time for high availability of storage. For this, we’re taking two servers to create volumes and replicate data between them.

Step :1 Have at least two nodes

  1. Install CentOS 6.5 (or any other OS) on two nodes.
  2. Set hostnames named “server1” and “server2“.
  3. A working network connection.
  4. Storage disk on both nodes named “/data/brick“.

Step 2: Enable EPEL and GlusterFS Repository

Before Installing GlusterFS on both the servers, we need to enable EPEL and GlusterFS repositories in order to satisfy external dependencies. Use the following link to install and enable epel repository under both the systems.
  1. How to Enable EPEL Repository in RHEL/CentOS
Next, we need to enable GlusterFs repository on both servers.
# wget -P /etc/yum.repos.d http://download.gluster.org/pub/gluster/glusterfs/LATEST/EPEL.repo/glusterfs-epel.repo

Step 3: Installing GlusterFS

Install the software on both servers.
# yum install glusterfs-server
Start the GlusterFS management daemon.
# service glusterd start
Now check the status of daemon.
# service glusterd status
Sample Output
service glusterd start
  service glusterd status
  glusterd.service - LSB: glusterfs server
      Loaded: loaded (/etc/rc.d/init.d/glusterd)
     Active: active (running) since Mon, 13 Aug 2012 13:02:11 -0700; 2s ago
    Process: 19254 ExecStart=/etc/rc.d/init.d/glusterd start (code=exited, status=0/SUCCESS)
     CGroup: name=systemd:/system/glusterd.service
      ├ 19260 /usr/sbin/glusterd -p /run/glusterd.pid
      ├ 19304 /usr/sbin/glusterfsd --xlator-option georep-server.listen-port=24009 -s localhost...
      └ 19309 /usr/sbin/glusterfs -f /var/lib/glusterd/nfs/nfs-server.vol -p /var/lib/glusterd/...

Step 4: Configure SELinux and iptables

Open ‘/etc/sysconfig/selinux‘ and change SELinux to either “permissive” or “disabled” mode on both the servers. Save and close the file.
# This file controls the state of SELinux on the system.
# SELINUX= can take one of these three values:
#     enforcing - SELinux security policy is enforced.
#     permissive - SELinux prints warnings instead of enforcing.
#     disabled - No SELinux policy is loaded.
SELINUX=disabled
# SELINUXTYPE= can take one of these two values:
#     targeted - Targeted processes are protected,
#     mls - Multi Level Security protection.
SELINUXTYPE=targeted
Next, flush the iptables in both nodes or need to allow access to the other node via iptables.
# iptables -F

Step 5: Configure the Trusted Pool

Run the following command on ‘Server1‘.
gluster peer probe server2
Run the following command on ‘Server2‘.
gluster peer probe server1
Note: Once this pool has been connected, only trusted users may probe new servers into this pool.

Step 6: Set up a GlusterFS Volume

On both server1 and server2.
# mkdir /data/brick/gv0
Create a volume On any single server and start the volume. Here, I’ve taken ‘Server1‘.
# gluster volume create gv0 replica 2 server1:/data/brick1/gv0 server2:/data/brick1/gv0
# gluster volume start gv0
Next, confirm the status of volume.
# gluster volume info
Note: If in-case volume is not started, the error messages are logged under ‘/var/log/glusterfs‘ on one or both the servers.

Step 7: Verify GlusterFS Volume

Mount the volume to a directory under ‘/mnt‘.
# mount -t glusterfs server1:/gv0 /mnt
Now you can create, edit files on the mount point as a single view of the file system.

Features of GlusterFS

  1. Self-heal – If any of the bricks in a replicated volume are down and users modify the files within the other brick, the automatic self-heal daemon will come into action as soon as the brick is up next time and the transactions occurred during the down time are synced accordingly.
  2. Rebalance – If we add a new brick to an existing volume, where large amount of data was previously residing, we can perform a rebalance operation to distribute the data among all the bricks including the newly added brick.
  3. Geo-replication – It provides back-ups of data for disaster recovery. Here comes the concept of master and slave volumes. So that if master is down whole of the data can be accessed via slave. This feature is used to sync data between geographically separated servers. Initializing a geo-replication session requires a series of gluster commands.

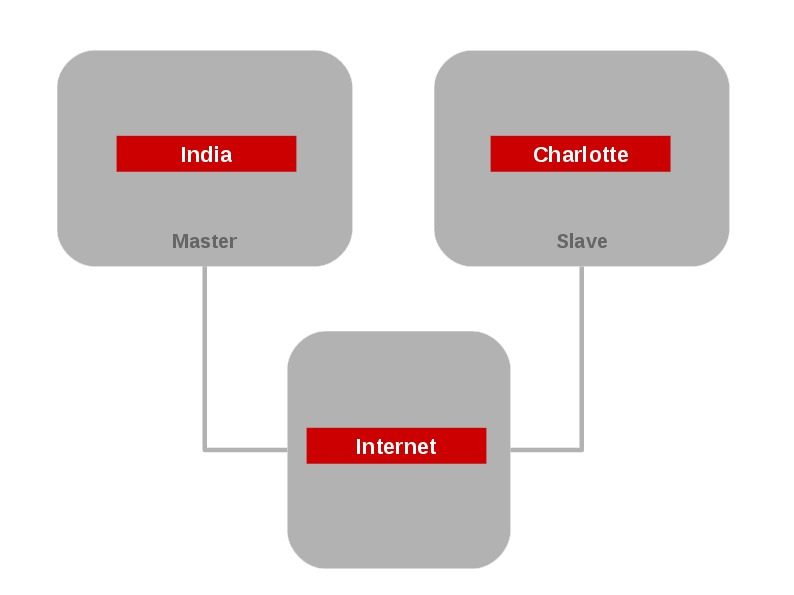

Here, is the following screen grab that shows the Geo-replication module.
Geo Replication
Geo Replication

Reference Links

That’s it for now!. Stay updated for the detailed description on features like Self-heal and Re-balance, Geo-replication, etc in my upcoming articles.
